SSH Tunneling to overcome Firewall rules.....

A Typical network scenario in an Organisation

So, what is SSH Tunneling ?
When one network protocol(delivery protocol) encapsulates another protocol over itself, it's called Tunneling (Wikipedia)
And when the delivery protocol is SSH its called SSH Tunneling. Simple !!

Usage Scenario
Consider a typical scenario as shown above.
We have a web server called Atlantis and a SSH server called Endeavour.
For some reason(company policy ??) users are allowed access only to SSH server and not to the webserver. What if a user wants to access the webserver ?? Without tunneling he cannot access the webserver because port 80 is blocked by the firewall rules; so what's next ?

SSH tunneling can come to rescue in such situations.
We can Tunnel HTTP protocol (web server) over SSH protocol. So, how do we do it ?
Connect to SSH server as:

$ ssh Endeavour -L8080:Atlantis:80
$ ssh [ssh server] -L[local port]:[remote machine]:[port on remote machine]


The only thing to keep in mind is that the remote machine must be accessible by your ssh server. What this does is, it opens a local port 8080 and forwards all the traffic on that port to Atlantis on port 80 through your SSH server. The SSH server acts as the relay between your machine and the webserver.

To access the webserver, just point your browser to http://localhost:8080

Other Advantages
Since SSH is a secure protocol, meaning all the communication between your machine and the server is encrypted; it helps to transfer unencrypted traffic(http) over the network through secure channel(ssh).

Windows: Of 32-bit and 64-bit application registry

I recently ran into a problem where i was doing some development work and tried to read the value of a registry from under HKLM:software\microsoft\"Myprogram" using a C# program. The program kept failing and was not able to read it; it was not even able to open the said registry key. Initially, i thought that it might be a permissions problem, but NO !! To add to my frustation, i can clearly "see" the key being present in the registry.

After banging my head in the wall for some time and googling, i finally found that on 64 bit machines (where i a was doing my development work) there are 2 versions of the application registry. One for 32 bit applications to use and another version for 64 bit appications to use. regedit for 32-bit version resides under C:\Windows\System32 and 64-bit version resides under C:\Windows\SysWOW64.

The installer which wrote those registry keys was a 32 bit application; hence the registry entries were made to 32 bit version of the registry. The C# application that I was developing was targeting "x86" architecture. When I ran the application it always tried to open the 64 bit version of the registry and kept failing. I then changed the "platform target" in the project properties page from "x86" to "AnyCPU" and wholla!! problem solved :)

-----
Q. Why is 6 afraid of 7 ?
A. Because 7 8 9 :)
-----

Transform Linux to Mac OS X

Before I proceed, let me first state that i LOVE the simplicity of my Linux desktop (Gnome to be precise). I am writing this post just to demonstrate that how easy it is to make your Linux desktop look like a Mac ☺

The two things that are characteristic of Mac are :
1. It's Dock at the bottom.
2. Global menu bar at the top.

There are many projects (like cairo dock, avant window navigator etc) out there that provide Mac like Dock for Linux. But the one that i find more useful and easy to configure is Docky. To find a list of dock applications go to http://en.wikipedia.org/wiki/List_of_dock_applications.

Since i am using Fedora, the details will be specific to it, but it would be somewhat similar in other distros as well.
Before we start, lets see how the default desktop looks like in fedora 14.

Default Desktop in Fedora 14

Let's get started

1. Installing the Dock

Fedora uses yum as the package manager. So to install docky, open a terminal and execute
$ yum install docky

2. Installing Global Menu
Open up a terminal and execute
$ yum install gnome-applet-globalmenu

Post Install configuration

Delete bottom panel

At this point there will be no visible changes, because our installed programs are not running. We need to get rid of the bottom panel. To do this right click on empty space on the bottom panel to bring the context menu and click on "Delete This Panel". Similarly delete the custom menu bar in the top left corner.

Add to Panel

The next step is to add the main GNOME menu. This is similar to custom menu bar but does not have "Application", "Place" and "System" as shown in the custom menu bar. To do this right click on empty space on the top panel and click on "Add to Panel".

Add Global Menu to Top Panel

Similarly add Global menu to the top panel. If you cannot find this item, try logging out and login back.

Enable Docky from StartUp applications list.

The next step is to enable Docky from startup applications list. To do that execute $ gnome-session-properties from a terminal and select Docky from the list.










Change the wallpaper if you like. I have also installed gnome-color-icon theme. It provides different colored icon themes; i have selected purple one. To install, open a terminal and execute $ yum install gnome-colors-icon-theme

Log-off and login again. Here is the final desktop look.

Pseudo Mac

----- Insanity is hereditary, you get it from your kids :) -----

Password free login to SSH using public keys

Many of us at some point in time have faced this situation of working remotely on a Unix/Linux box. The most preferred way is through SSH. But every time you login to a machine remotely you have to provide your password. How about logging in without password; using public keys ???☺

To demonstrate this method, I will be using 2 Linux machines.

1. Caffeine: This will act as ssh server.

2. Coffee: This machine will act as client.

Server Side Settings (Caffeine)

On the server we need to start the ssh daemon.  $ sudo /etc/init.d/sshd start

Start the SSH server

That's all we need to do on the server side !!

Client Side Settings (Coffee)
In order to login without password, first you need to create public-private key pairs.
In order to do this on linux (fedora or ubuntu ) execute   $ ssh-keygen

Create public-private key pair

Just hit and accept the default file name. Enter the pass-phrase or hit enter for none.

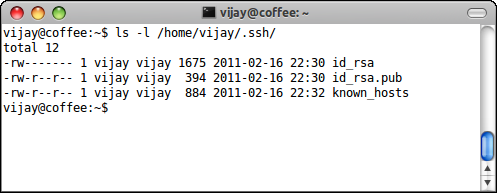

This step would have created 2 files as shown below in your  ~/.ssh folder.

Public/Private key files

Of the two files, id_rsa contains the private key and id_rsa.pub contains the public key.
After we have the public and private key files, we need to add these keys to the authenticating agent. Its the authentication agent who performs the authentication on our behalf. To add the keys execute $ ssh-add
If you have provided the password in the above step, it will ask for a password

ssh-add, keys with password

else it will not

ssh-add, keys without password

The next step is to copy and paste the public key from id_rsa.pub into Server's (Caffeine)   ~/.ssh/authorized_keys file on a new line. This step needs to be done once, either manually or by executing    $ ssh-copy-id user@machine. You will be prompted for your password.

** Important: The file permission for   ~/.ssh/authorized_keys must be 400, else it will not work. **

ssh-copy-id

Testing !!
That's all that is needed. You can now try to login to the server without passwords.

To login just type  $ ssh user@machine or like most of the cases if the user-name is same on both machines then just $ ssh machine

Login with user and machine names

If the username is same, just use machine name

----- I tried so hard and got so far, but in the end it doesn't even matter -----

Some Shots at Photography

Last week I went to seattle downtown and here are some of the clicks that somehow turned nice. I must say that I am not at all a photographer, but I like to click :)

Space Needle at Dusk

Seattle Downtown Skyline

Seattle Downtown

From a child's viewpoint
